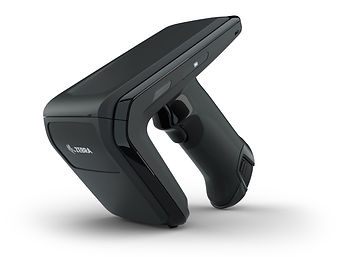

Zebra RFD40
Ultra-Fast, Durable RFID Sled for Effortless Inventory and Asset Tracking
Efficiently capture RFID tags at high speed with the Zebra RFD40 UHF RFID Standard Sled. This ergonomic and durable sled delivers over 1,300 tag reads per second with a long read range, making inventory, asset, and patient tracking faster and more accurate. Equipped with a large 7,000mAh battery, tri-function trigger, and seamless pairing with Zebra mobile devices, it’s designed for continuous, intensive use in any environment. Built to withstand drops and tough conditions, the RFD40 is future-proof, ensuring flexible integration and maximum productivity for your business.
Technical Feature
Dimension
15.1 cm H x 8.4 cm W x 16.65 cm L (5.94 in. x 3.3 in. x 6.5 in.)
Tumble Specification
500 cycles (1000 drops, 0.5 m / 1.6 ft.) at room temp
Weight
±541g (sled with battery)
Operating Temperature
-10°C to 50°C (14°F to 122°F)
Power
Quick-Release, PowerPrecision+ Li-Ion 7000mAh battery
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Notification
Decode LEDs, Battery Status LED, Beeper
Humidity
5% - 85% (non-condensing)
User Input
Tri-Function User Programmable Trigger
ESD Protection
±15kV air, ±8kV direct, ±8kVdc indirect discharge
Drop Specification
Multiple 1.5 m (5 ft.) drops to concrete
Sealing
IP54
RFID Standards Supported
EPC Class 1 Gen 2; EPC Gen2 V2
Accessories
Cradles (1-slot, multi-slot), USB-C Cable, Battery Toaster, eConnex™ Adaptors, Holster
RFID Engine
Zebra Proprietary Radio Technology
Charging
Cradle cups (for sled, mobile computer, or combo), USB-C, cable cup, wall brick, battery toaster
Fastest Read Rate
1300+ tags/sec
Host Connection
eConnex™ (8-pin), USB-C Cable, USB Cable Cup
Nominal Read Range
~19.7+ ft. (~6+ m)
Host Computer
Zebra mobile computers & tablets, Windows PCs
Frequency Range
US: 902-928MHz; EU: 865-868MHz; JP: 916-921MHz; Other: 916.3, 917.5, 918.7MHz (0-30 dBm)
Regulatory
FCC Part 15, EN 301 489-1/3, EN 55035/55032, IEC 62368-1, EN 50364, FCC Part 2.1093, etc.
